VACUUM Simulator in Schema Statistics

VACUUM Simulator lets you tweak autovacuum settings to learn the relationship between Postgres configuration settings and autovacuum patterns. It also helps you find better autovacuum settings for the table.

Overview

Autovacuum can be triggered by the following 3 causes:

  1. Triggered by dead rows
  2. Triggered by freeze age
  3. Triggered by inserts (Postgres 13 or above)

Each cause has related configuration settings. By tweaking these settings, you can see changes in the simulation data. There is a panel for each cause, and each panel has the actual value and graph section to show how it was in the selected time range, and a simulation value and graph section to show how it would be based on the collected statistics and the adjusted configuration settings. You can also create a permalink of your current simulation and modified settings to share with your team members.

Limitations

  • The current autovacuum count can be much bigger than the simulation count with frequently autovacuumed tables, since the simulation can only perform autovacuum every 10 minutes. The simulation can still be useful to understand why so many vacuums are performed, and to explore ways to reduce autovacuum frequency.

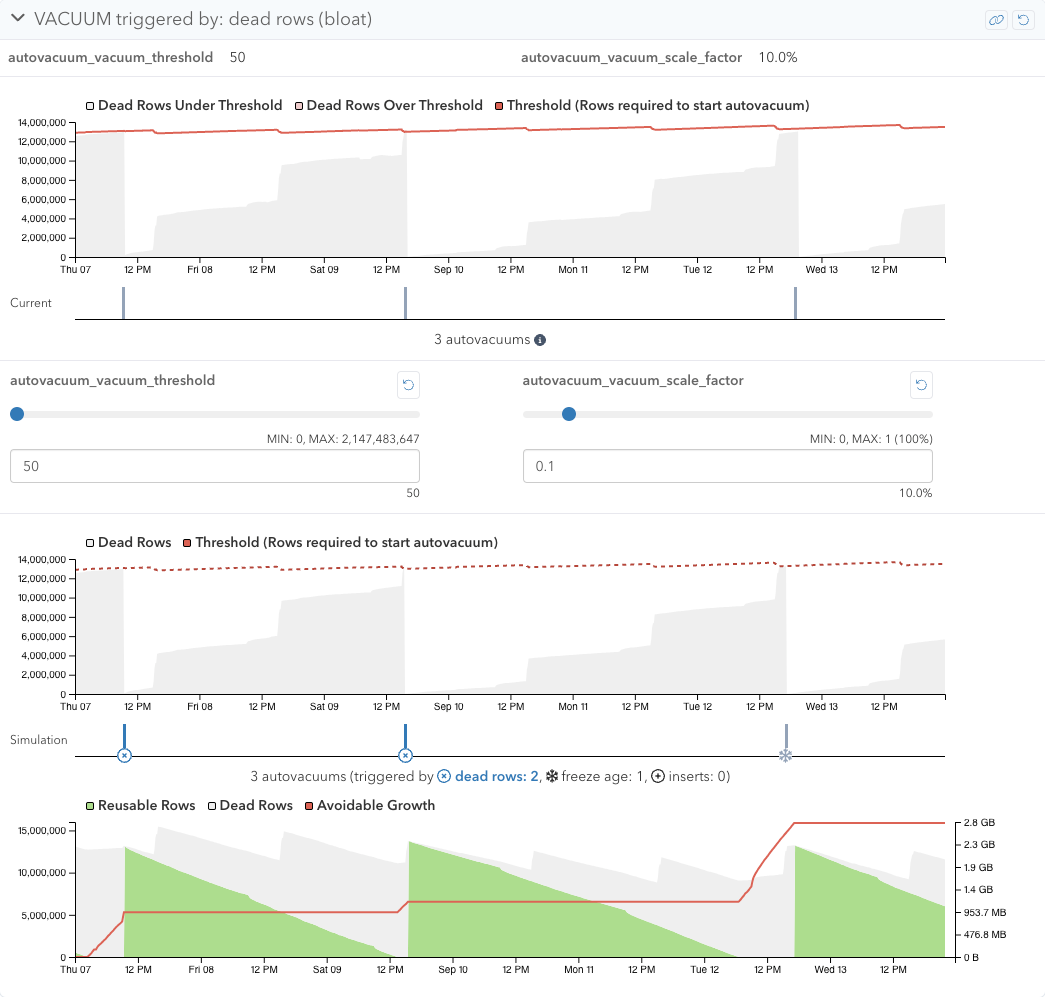

Triggered by dead rows

To prevent table bloat, Postgres runs autovacuums periodically to clean up dead rows. You can learn more about bloat in the What is bloat? page.

Triggered by dead rows

When the number of dead rows exceeds the following threshold, dead rows autovacuums will be triggered:

threshold = autovacuum_vacuum_threshold + autovacuum_vacuum_scale_factor * pg_class.reltuples

where pg_class.reltuples is the number of live rows in the table.

With VACUUM Simulator, you can tweak autovacuum_vacuum_threshold and autovacuum_vacuum_scale_factor in this section. Lowering these configuration settings usually triggers autovacuums more, as the threshold becomes lower and the dead row count will reach the threshold more often. You can first try lowering autovacuum_vacuum_scale_factor to see how it will affect the behavior, before touching autovacuum_vacuum_threshold.

On the other hand, if you are observing too many autovacuums on a table, your workload might be creating many dead rows compared to total live rows. In that case, making autovacuum_vacuum_scale_factor 0 and adjusting autovacuum_vacuum_threshold to a value that lowers the total autovacuum count.

This section also contains the graph of avoidable growth, calculated based on the following factors:

  • How many reusable rows are available (already VACUUMed rows)
  • How many dead rows are there (to be VACUUMed rows)

Let's say there are 10 reusable rows and 20 dead rows. With this situation, if 30 rows are INSERTed:

  1. Use 10 reusable rows
  2. Use 20 totally new rows

However, if 20 dead rows were already VACUUMed at this point, the reusable rows will be 30 rows and all INSERTs will use these reusable rows without acquiring space for new rows. We'll consider these 20 dead rows as avoidable growth. When the table is showing this pattern a lot, it indicates that autovacuums are not running frequently enough. Try tweaking configuration settings to trigger simulation autovacuums more often and see if avoidable growth decreases.

There is a specific insight for this in the Alerts & Check-Up system: Bloat - Insufficient VACUUM Frequency.

Limitations

  • The simulation data tends to trigger autovacuum earlier than the actual triggered timing, especially with tables with lots of UPDATEs. Occasionally, UPDATEs operations don't create dead rows, or even decrease dead rows when "mini autovacuum" happened with these operations. The current simulation can't represent this situation well, therefore dead rows simply keep increasing with UPDATEs and trigger autovacuum earlier.
  • The avoidable growth graph may over report avoidable growth size. You can check the Estimated Table Bloat panel of Schema Statistics VACUUM/ANALYZE Activity page for the current estimated table bloat to assess the actual impact.

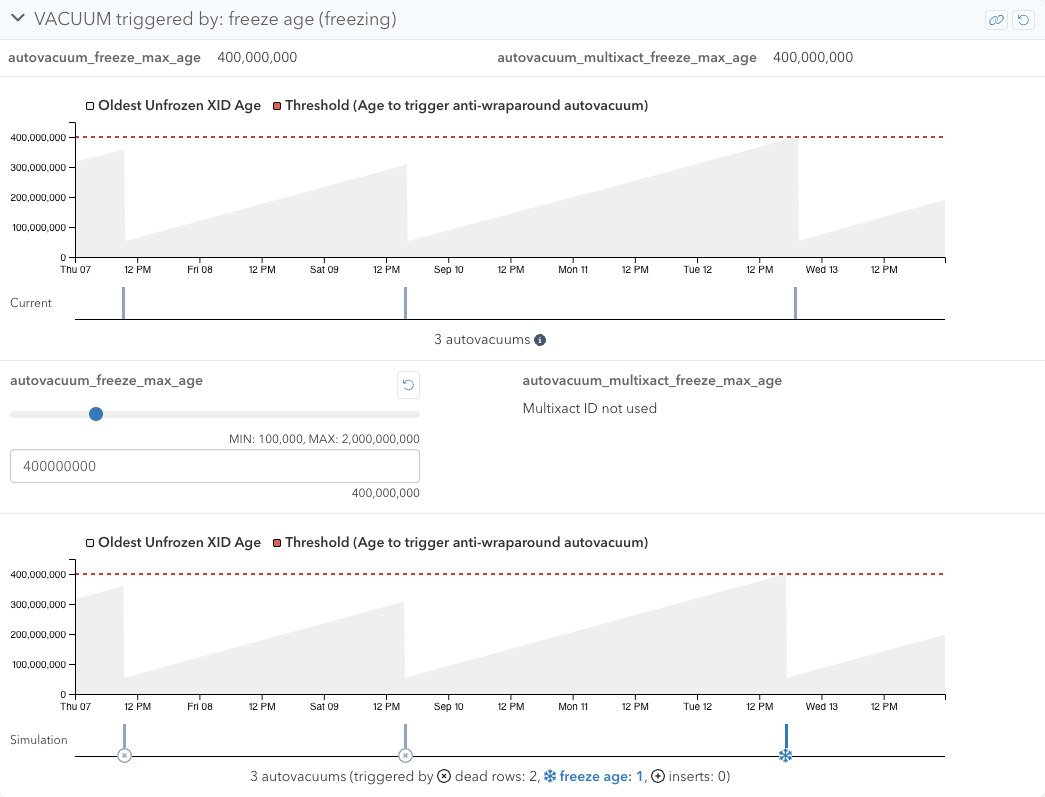

Triggered by freeze age

To prevent transaction ID wraparound, Postgres runs autovacuums periodically to freeze older rows (sometimes referred to as "freezing old transaction IDs"). You can learn more about freezing in the What is freezing? page.

Triggered by freeze age

When the age of the oldest unfrozen transaction ID exceeds autovacuum_freeze_max_age (or the oldest unfrozen multixact ID exceeds autovacuum_multixact_freeze_max_age), freeze age autovacuums will be triggered. These autovacuums are called anti-wraparound autovacuums.

With VACUUM Simulator, you can tweak autovacuum_freeze_max_age and autovacuum_multixact_freeze_max_age in this section. autovacuum_multixact_freeze_max_age can be only tweaked if multixact IDs are being used in your database. Lowering these configuration settings triggers autovacuums more, and increasing these configuration settings will decrease autovacuums triggered by freeze age.

Limitations

  • The simulation is using data of average transactions (or multixacts) per second (tps). If the tps varies a lot depending on the time of the day or day of the week, the simulation may look a lot different than the actual data.
  • Autovacuums triggered by other causes usually try to freeze old rows. The simulation also freezes them, however, there are cases that freezing won't happen when there are nothing can be frozen. This can cause the transaction age to be reset even when it shouldn't be in the simulation, potentially cause the simulation to trigger less autovacuums by freeze age.

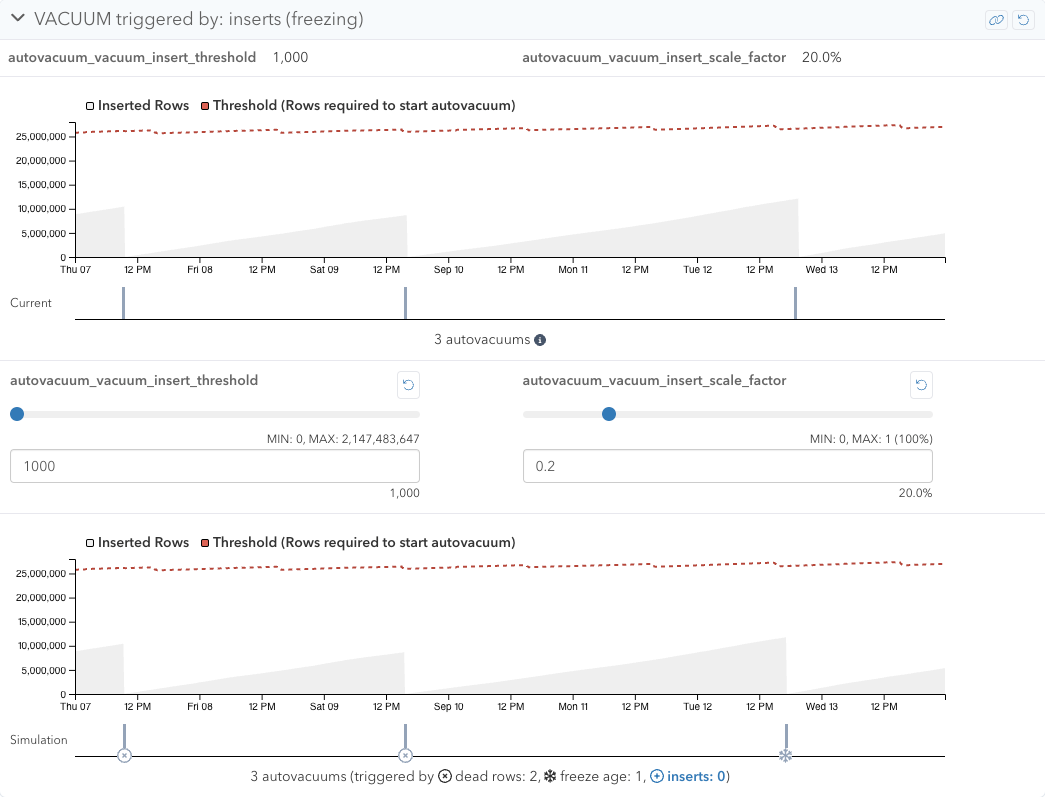

Triggered by inserts

Since an append-only table won't generate any dead rows, autovacuum won't be triggered by dead rows. It can still be triggered by freeze age, but depending on the database workload, it can be a long time until it's triggered. This can turn normal incremental maintenance into a resource-intensive, long-running task that can impact database performance. To counteract this, since Postgres 13, autovacuum can be triggered by INSERTs. Autovacuum based on inserts is triggered to freeze old transaction IDs like freeze age autovacuum, but more importantly, it is triggered to update a visibility map. Each table has a visibility map to keep track of which pages contain only tuples that are known to be visible to all active transactions. For a case like an append-only table, all pages of the table should be all-visible, and are likely to stay all-visible moving forward (they will be flagged as not all-visible if there is any write operation on that page). However, Postgres doesn't know about this visibility metadata until VACUUM scans the table and sets a flag. Updating the visibility map helps index-only scans, as they will be able to avoid reading table data to check visibility, improving performance. During VACUUM of an append-only table, it is often able to mark pages as all-frozen, in addition to all-visible, and it will stay that way (since these rows will never be modified). This will improve performance for any subsequent VACUUMs as pages that are both all-visible and all-frozen don't need to be VACUUMed and will be skipped. Updating the visibility map also helps index-only scans, as they will be able to avoid reading the table data to check visibility, improving performance.

Triggered by inserts

When the number of inserted rows (since the last VACUUM) exceeds the following threshold, inserts autovacuums will be triggered:

threshold = autovacuum_vacuum_insert_threshold + autovacuum_vacuum_insert_scale_factor * pg_class.reltuples

where pg_class.reltuples is the number of live rows in the table.

With VACUUM Simulator, you can tweak autovacuum_vacuum_insert_threshold and autovacuum_vacuum_insert_scale_factor in this section. Lowering these configuration settings triggers autovacuums more with append-only or append-mostly tables, though this rarely triggers autovacuums for other types of tables.

If you are observing too many inserts autovacuums with the table, you can make autovacuum_vacuum_insert_scale_factor 0 and adjust autovacuum_vacuum_insert_threshold to find a reasonable threshold for inserts autovacuums.

Limitations

  • This simulation is only available with servers running Postgres 13 or above.
