Step 4: Configure the Collector

Finding your Supabase connection information

The collector currently uses IPv4 to connect to your database, but by default, Supabase’s direct connection is IPv6-only. Therefore, we generally recommend connecting through the Supavisor session pooler (port 5432 on the pooler hostname), rather than the direct connection unless you are already paying for the IPv4 direct connection add-on in your Supabase project. IPv4 add-on.

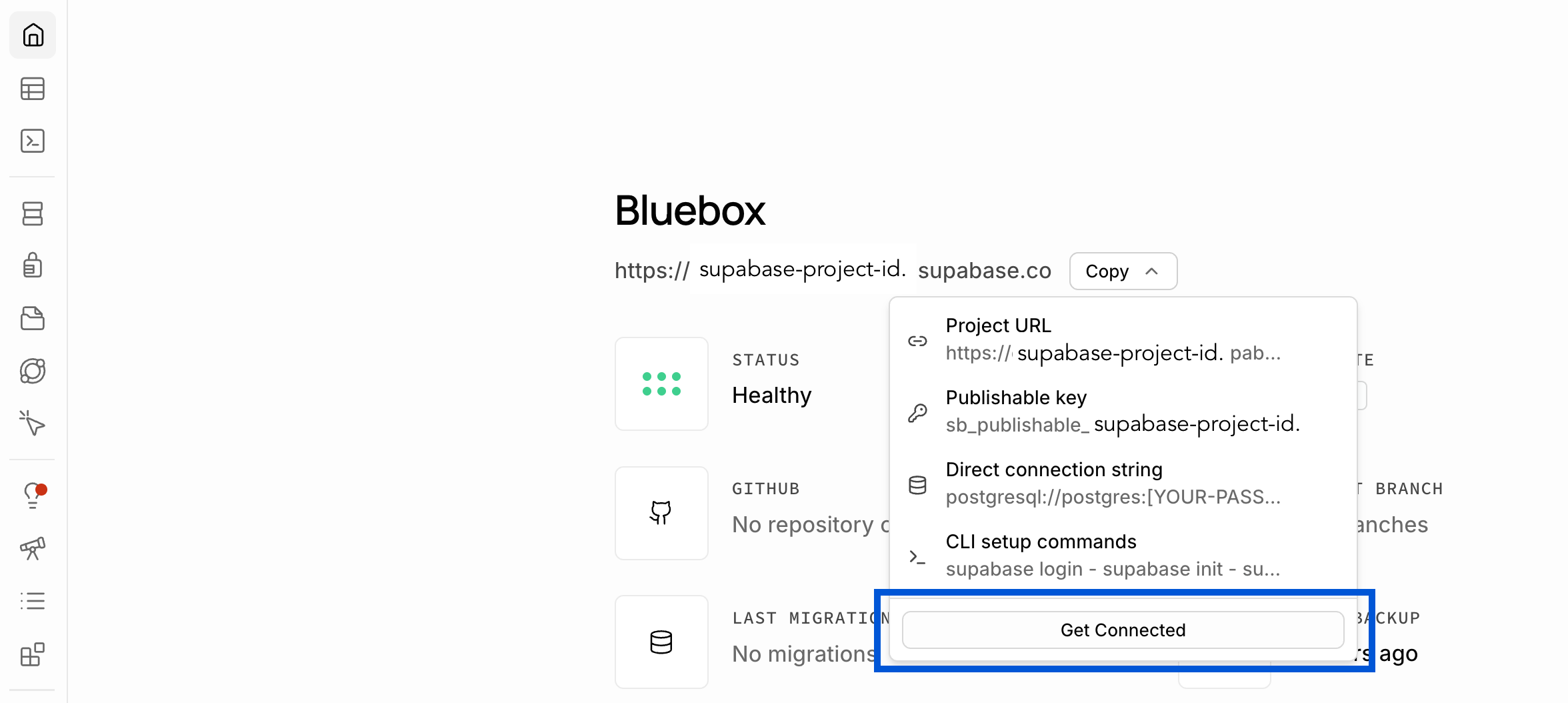

You can find your session pooler connection information by clicking on the Get Connected button in the Supabase dashboard:

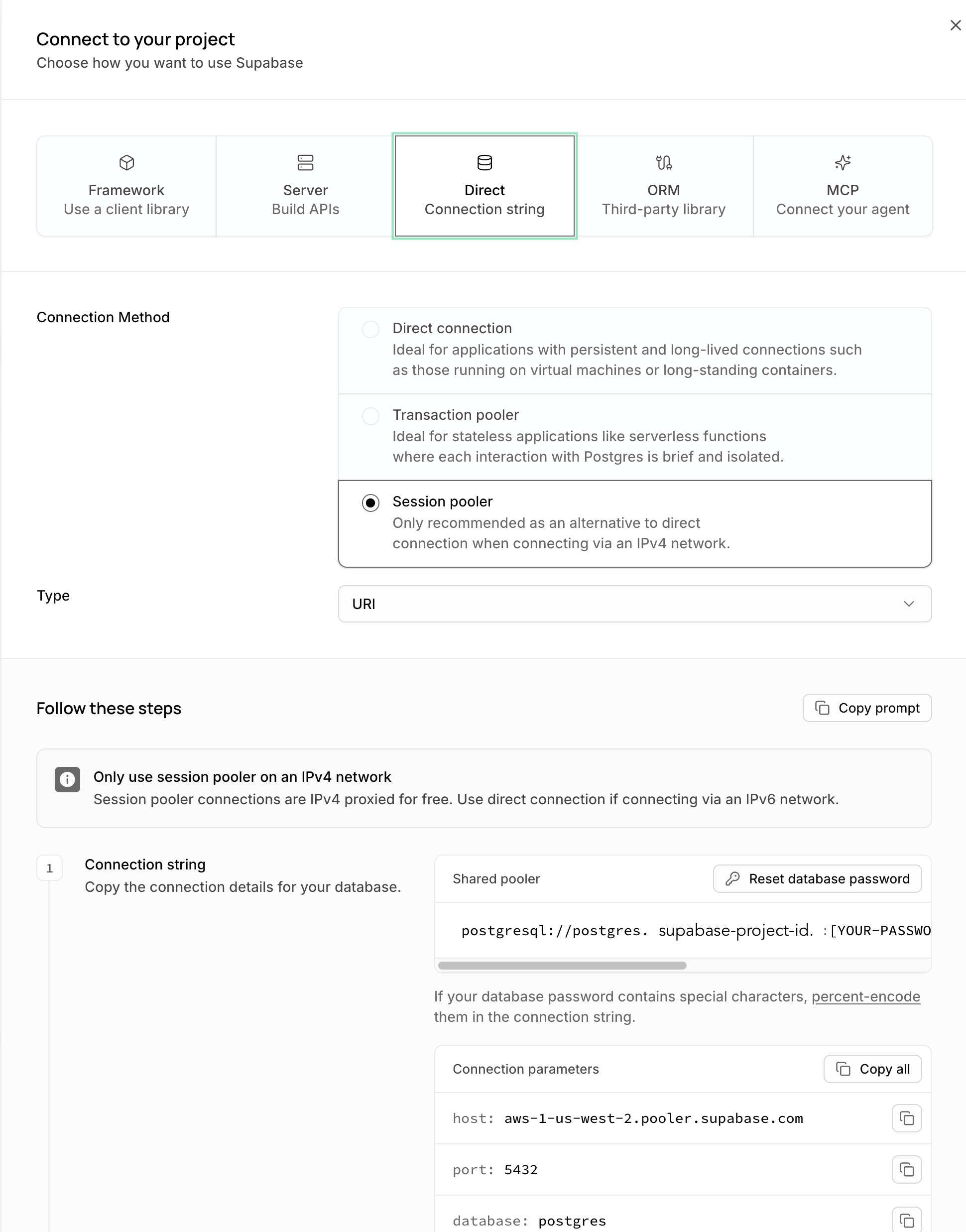

Then select the Session pooler option under the Direct Connection String tab.

Modify the collector configuration file

The collector configuration file lives in /etc/pganalyze-collector.conf, and looks like this:

[pganalyze]
api_key = your_pga_organization_api_key

[server1]
db_host = aws-0-your-region.pooler.supabase.com
db_port = 5432
db_name = postgres
db_username = pganalyze.your-project-ref
db_password = your_monitoring_user_password

Fill in the values step-by-step:

1. The api_key can be found in the pganalyze Settings page for your organization, under the API Access tab
2. The db_host is the Supavisor pooler hostname for your project, of the form aws-0-<region>.pooler.supabase.com. You can find it under Project Settings → Database in the Supabase dashboard (choose the “Session pooler” tab)
3. The db_port is 5432 for the session pooler — do not use port 6543, which is the transaction pooler and doesn’t support the session-level features the collector relies on
4. The db_name is the database you want to monitor (postgres by default)
5. The db_username and db_password should be the credentials of the monitoring user we created in Step 1. Note the pooler requires the <role>.<project-ref> username format, so this is pganalyze.your-project-ref, not just pganalyze

If you’re paying for Supabase’s IPv4 add-on and prefer to connect directly instead, use the direct connection hostname (db.<project-ref>.supabase.co) as db_host, drop db_port (defaults to 5432), and use the plain pganalyze username.

The collector automatically detects that this is a Supabase project from the db_host suffix, so no further platform-specific configuration is required.

Testing the new configuration

Run the following to make sure the configuration works:

sudo pganalyze-collector --test

Once you’ve confirmed the install is successful and you’re receiving query data in pganalyze, we recommend setting up Log Insights as a follow-up step, to automatically track log events in your database.
